Highest brightness IP65 96W double row 3528 LED strip light ribbon with 1200LED

Price: 0.9~3.5 USD
Payment Terms: T/T,L/C,WU;Paypal
Place of Origin: Guangdong, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: AL-SV3528W240-IP20
Production Capacity: 300,000 meters/month
Delivery Date: 5 to 15 days
Certification: CE
Drive Current Per Piece: 20mA
LED type: SMD3528
Lumen/LED: 6 ~ 7 lm
PCB Width: 15mm
Optional Colours: W, WW, CW, Red, Green, Blue...
Cerfictae: CE, RoHS & ETL
Means of Transport: Ocean,Air;Express Delivery
Packing: 5m/reel
Emitting Color: White
Brand Name: Alightek
Power Consumption Per Piece: Taiwan LED chip
LED Quantity per meter: 240
Watt/meter: 19.2W
PCB Colour: White, yellow for option
IP Rate (waterproof type): IP65 waterproof
Warranty: 2 year

Double Row 240LEDs SMD3528 LED Strip
Max Power: 19.2W/meter, Super Bright
Lumen/LED: 6 ~ 7LM
Double Line LED emitting
Cetificate: CE & RoHS, ETL

 Main features - Double Line Waterproof SMD 3528 flexible LED tape
- Eco-friendly, Energy saving, dimmable, High brightness
- Economical version, uniform colour, IP65 waterproof
- Ddhesive tape back makes for easy installation
- Flexible linear lighting, can be cut by unit & connected by connectors
- 240LEDs per meter, Super Bright for the ambient back lighting


Main Parameter of Double row 240LEDs light strip
LED TYPETop SMD3528 Epistar LED
Q'TY PERMETER240pcs/meter - Double Line
POWER CONSUMPTIONMax 19.2watts per meter
INPUT VOLTAGEDC24V
DIMENSIONS14 or 15mm Wide, 5m length
LUMEN PER LED6~7 LM
DRIVER FOR 5 METERS120watts 24V Power Supply Required (constant voltage)
IP RATINGIP65 waterproof
BEAM ANGLE120*degrees
VIEWING ANGLEAdjustableby Mounting Position
DIMMABLEYes
LIFESPAN>50,000Hours
STANDARDSCE, RoHS, ETL
HOUSINGCopper PCB
CONNECTORDC connector and other various connectors
OPTIONAL COLOURWhite,WarmWhite, Cool White, Red, Green, Blue, Yellow

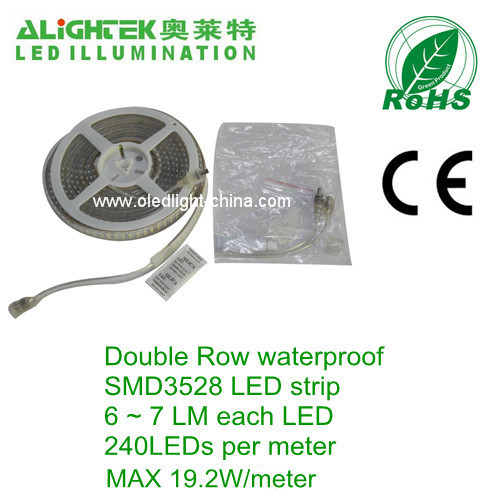

Photo - SMD3528 flex light stripe 1200LEDs per reel
19.2W per meter double line IP65 IP68 waterproof 240 LED tape light ribbon 24VDC CE RoHS UL



Dimension Drawing of 120pcs/m 3528 LED strip
IP65 outdoor waterproof DC24V 9.6W high brightness SMD3528 120 LED strip light ribbon



General Accessories of flexible LED light strip
IP65 waterproof 3528 flexible LED strip 60 LEDs per meter white color PCB 24W


Below is the picture to show you how to connect the IP67 LED Strip lights?
IP65 IP68 waterproof 240LED 96W double line 3528 LED strip

Application - 96W SMD3528 flex LED tape ligth strip
~ The outline of a building decoration
~ Outdoor Advertisement decoration, KTV hidden light
~ IP65 Waterproof LED strip suitable for outdoor decoration
~ Architectural lights for canopy, Corridor, Window, Archway, Backlight,
~ Edge lighting for signage, Decorative lights for holiday, event, retails display, exhibition.


Flexible LED strip lights' project from our customer
19.2W per meter double line IP65 IP68 waterproof 240 LED tape light ribbon 24VDC CE RoHS UL



Waterproof version to SMD3528 LED stripfor your option below

IP65 waterproof 3528 flexible LED strip 60 LEDs per meter white color PCB 24W


More about us
Alightek owns over 9, 000 Square Meters workshop which includes R & D section, Production & Assembly line , Aging Test center and so on. We introduced world-class Full-automatic High-speed and High-precision SMT machines, DIP & Reflow Soldering assembly lines,several Automatic manufacture lines and Aging lines, as well as dozens of advanced testing equipments. It could ensure us to have the enough Production Capacity to meet all customers' willing on timely shipping. Also it makes ALIGHTEK could deliver bulk orders with more stable quality.
