IP65 IP67 outdoor Silicon sleeved 3528 SMD LED strip 60 LEDs 4.8W per meter white color PCB 12V low voltage

Price: 0.9~3.5 USD
Payment Terms: T/T,L/C,WU;Paypal
Place of Origin: Guangdong, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: AL-SV3528W60-IP65
Production Capacity: 300,000 meters/month
Delivery Date: 5 to 15 days
Emitting Color: White
Drive Current Per Piece: 20mA
LED type: SMD3528
Lumen/LED: 6 ~ 7 lm
PCB Width: 8 mm
Optional Colours: W, WW, CW, Red, Green, Blue...
Cerfictae: CE, RoHS & ETL
Means of Transport: Ocean,Air;Express Delivery
Packing: 5m/reel
Voltage: DC12v
Brand Name: Alightek
Power Consumption Per Piece: Taiwan LED chip
LED Quantity/meter: 60
Watt/meter: 4.8W
PCB Colour: White
IP Rate (waterproof type): IP65 Hollow sleeve
Warranty: 2 year

LED Qty: 300pcs 3528 LED per 5m reel
Max Power: 24W/reel
Lumen/LED: 6 ~ 7LM
Waterproof: IP65 Silicon sleeved
Cetificate: CE & RoHS

Outdoor waterproof SMD 3528 LED tape light
Good quality PCB, better heat dissipation
light decline in 3% -5% after 1000 hours
With mounting clip and 3M tape, easier for installation.
Widely used in advertisement decoration, interior decoration back lighting.
Could be cut to length for easy usasge, IP20, IP55, IP65, IP68 for option.



Main Parameter of this 12V DC SMD3528 light strip
LEDSOURCE / CHIP60pcs/m Top3528 Epistar SMD LED
POWER CONSUMPTION24watts Max per 5meters/reel
INPUT VOLTAGE12vDC
CONNECTORWaterproofDC connector
LUMEN PER LED6~ 7 LM
OPTIONAL COLOURWarmWhite, Cool White, Red, Green, Blue, Yellow
BEAM ANGLE120*degrees
VIEWING ANGLEAdjustableby Mounting Position
DRIVER30watt12V Power Supply Required
DIMMABLEYes
LIFESPAN>50,000Hours
STANDARDSCE,RoHS
IP RATINGIP65for outdoor or indoor usage
HOUSINGCopperPCB
DIMENSIONS8mmWide, 5m length

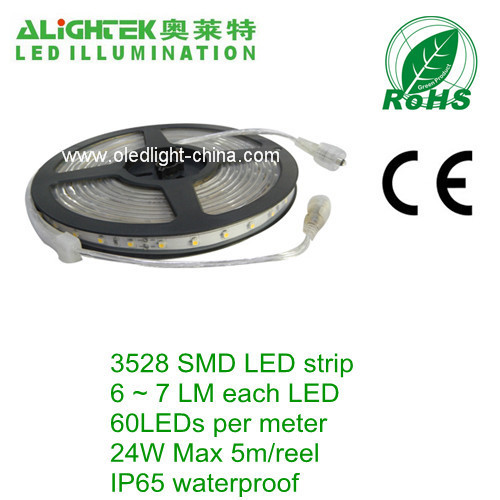

Photo of SMD3528 flex light strip with 60LEDs per meter
IP65 waterproof 3528 flexible LED strip 60 LEDs per meter white color PCB 24W



How to connect the Single Colour LED strip to the power supply?
IP65 waterproof 3528 flexible LED strip 60 LEDs per meter white color PCB 24W



SMD3528 LED strip waterproof version
for your option below

IP65 waterproof 3528 flexible LED strip 60 LEDs per meter white color PCB 24W



Regular Accessories of LED ribbon light
IP65 waterproof 3528 flexible LED strip 60 LEDs per meter white color PCB 24W




Common Problems and Solutions of common Flex LED strip
1. Please check if power supply is connected, or if the switch is in the connected position when the light does not work.
2. If the lamp lights on and off frequently, please check connection between power supply and strip in case that it is loose.


Note: If the SMD3528 flexible LED stripe light still don't work well after trying the methods above, please contact professionals' staff for help.
1. Please make LED drivers compatible with flexible LED strips before use LED strips;
2. To use LED light strips 5M in serial, longer than 5M in parallel;
3. Before use, first check the power supply used in compliance with of the power requirements;
4. Each roll ask for independent power supply; not to use of multi-volume series use;


Safety and Maintenance Information
1. SMD LED ribbon itself and all its components may not be mechanically stressed.
2. Don't damage or destroy conducting paths on the circuit board while installation.
3. To guarantee safety, only qualified personnel are allowed to install LED strips.
4. Make sure SMD LED ribbons are mounted to correct electrical polarity.
5. Parallel connection is highly recommended for its high safety.
6. Serial connection is not recommended because unbalanced voltage drop may damage SMD LED strips.
7. Insufficient and unstable power supply may cause flexible strip damage.
8. Don't install SMD LED ribbons directly on metallic or any other conductive surfaces.


Application of the 4.8W pet meter SMD3528 ligth strip
Waterproof LED strip both suitable for outdoor or indoor using
Backlight or edge lighting Cover lighting, Advertisement decoration, KTV hidden light
IP65 waterproof 3528 flexible LED strip 60 LEDs per meter white color PCB 24W
