Super bright 96W double row 1200 LED strip light ribbon 24VDC CE RoHS ETL

Price:	0.9~3.5 USD
Payment Terms:	T/T,L/C,WU;Paypal
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: AL-SV3528W240-IP20

Production Capacity: 300,000 meters/month

Delivery Date: 5 to 15 days

Brand Name: Alightek

Power Consumption Per Piece: Taiwan LED chip

LED Quantity per meter: 240

Watt/meter: 19.2W

PCB Colour: White, yellow for option

IP Rate (waterproof type): IP20 non-waterproof

Warranty: 2 year

Means of Transport: Ocean,Air;Express Delivery

Packing: 5m/reel

Emitting Color: White

Drive Current Per Piece: 20mA

LED type: SMD3528

Lumen/LED: 6 ~ 7 lm

PCB Width: 15mm

Optional Colours: W, WW, CW, Red, Green, Blue...

Cerfictae: CE, RoHS & ETL

1200LEDs SMD3528 LED strip double line
Max Power: 19.2W/Meter, Super Bright
Lumen/LED: 6 ~ 7LM
Double row LED emitting
Cetificate: CE & RoHS, ETL

Main features -240pcs Double Line SMD 3528 flexible LED ribbon light tape
- Eco-friendly, Energy saving, dimmable, super bright
- Economical version, uniform colour, non-waterproof
- Double faced adhesive tape back makes for easy installation
- Flexible linear lighting, can be cut by unit & connected by connectors
- 240LEDs per meter, Super Bright for the ambient back lighting

Main Parameter of Double row 240LEDs light strip

LED TYPE	Top SMD3528 Epistar LED
Q'TY PERMETER	240pcs/meter - Double Line
POWER CONSUMPTION	Max 19.2watts per meter
INPUT VOLTAGE	DC24V
DIMENSIONS	14 or 15mm Wide, 5m length
LUMEN PER LED	6~7 LM
DRIVER FOR 5 METERS	120watts 24V Power Supply Required (constant voltage)
IP RATING	IP20 indoor use
BEAM ANGLE	120*degrees
VIEWING ANGLE	Adjustableby Mounting Position
DIMMABLE	Yes
LIFESPAN	>50,000Hours
STANDARDS	CE, RoHS, ETL
HOUSING	Copper PCB
CONNECTOR	DC connector and other various accessoires
OPTIONAL COLOUR	White,WarmWhite, Cool White, Red, Green, Blue, Yellow

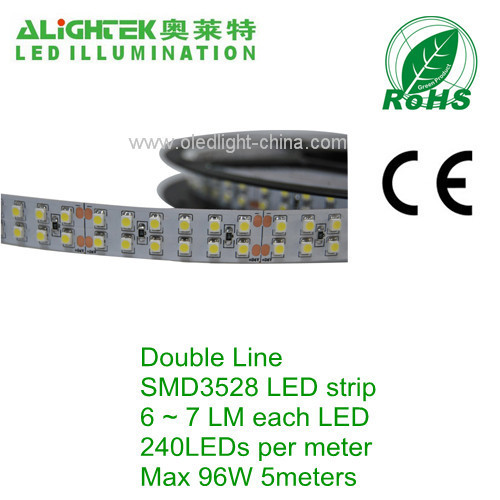

Photo - Dual Row SMD3528 flex LED tape light
19.2W per meter double line 240 LED strip light ribbon 24VDC CE RoHS ETL

IP68 SMD3528 double line led strip light Warm White
19.2W per meter double line 240 LED strip light ribbon 24VDC CE RoHS ETL

Dimension Drawing of 120pcs/m 3528 LED strip
19.2W per meter double line 240 LED strip light ribbon 24VDC CE RoHS ETL

Common Accessories of LED ribbon light (different sizes optional)
IP65 waterproof 3528 flexible LED strip 60 LEDs per meter white color PCB 24W

Safety and Maintenance Information
1. SMD LED ribbon light itself and all its components may not be mechanically stressed.
2. Don't damage or destroy conducting paths on the circuit board while installation.
3. To guarantee safety, only qualified personnel are allowed to install LED strips.
4. Make sure SMD LED tape light are mounted to correct electrical polarity.
5. Parallel connection is highly recommended for its high safety.
6. Serial connection is not recommended because unbalanced voltage drop may damage SMD LED strips.
7. Insufficient and unstable power supply may cause flexible strip damage.
8. Don't install SMD LED ribbons directly on metallic or any other conductive surfaces.

Application of 19.2W per meter double row SMD3528 ligth strip
~ DIY back light for creating your place warmly & lovely;
~ Architectural lights for canopy, Corridor, Window, Archway, Backlight;
~ Edge lighting for signage, Decorative lights for holiday, event, retails display, exhibition.
19.2W per meter double line 240 LED strip light ribbon 24VDC CE RoHS ETL
