Main features of IP68 flexible led stripe
- 5MM Width PCB ONLY, Best FPCB with the best heat conduction.
- High Lumen Taiwan quality SMD3020 LEDs
- 120 degree beam angle with consistant colour
- Good for the narrow location application usage (5mm width PCB)
- IP68 full waterproof LED tape for the outdoor application

Dimensional Drawing of IP68 flexible led stripe


Key parameters of IP68 flexible led stripe

LED TYPE	White Top SMD3020 LEDs
Q'TY PER METER	120 LEDs
POWER CONSUMPTION	Max 48 watts per reel of 5 meters
INPUT VOLTAGE	24V DC
DIMENSIONS	5mm Wide PCB, 5,000mm length
DRIVER FOR 5 one reel	60 watts 24V Power Supply (constant voltage)
IP RATING	IP68 outdoor use
BEAM ANGLE	120*degrees
VIEWING ANGLE	Adjustableby Mounting Position
LIFESPAN	>50,000Hours
STANDARDS	CE, RoHS, UL & ETL
HOUSING	Copper PCB
CONNECTOR	DC connector and other kind OF accessories

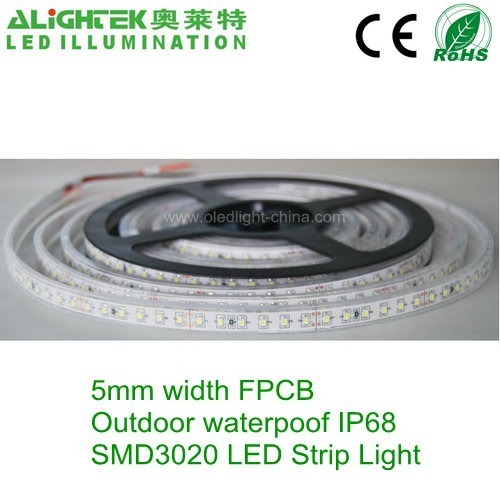

Photos of IP68 flex led light ribbon LED strip


IP68 Silicone tube with glue inside LED strip


IP68 LED ribbon lights for outdoor application
