chasing 5050 SMD RGB 600 LED tape light ribbon double rows from China manufacturer

chasing 5050 SMD RGB 600 LED tape light ribbon double rows

Price:	3.0~26.0 USD
Payment Terms:	T/T,L/C,WU;Paypal
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: AL-SV5050RGB120W-IP20

Production Capacity: 300,000 meters/month

Delivery Date: 5 to 15 days

Certification: RoHS

Drive Current Per Piece: 20mA

LED Quanitty Per Meter: 120 LEDs (Two Rows)

PCB width: 15 mm

Certificates: CE, RoHS

Lumen/LED: 20 lm

Colour: RGB

Means of Transport: Ocean,Air;Express Delivery

Packing: 5m/reel

Emitting Color: RGB

Brand Name: Alightek

LED type: SMD5050

PCB Colour: White or yellow

Waterproof Type: IP20 non-waterproof

Warranty: 2 years

Watt/meter: 28.8W Max

Double Line SMD5050 RGB LED tape;
120 LED per meter, 6 LEDs of 5cm/unit;
Max Power 28.8W/meter;
RGB COLOURS changing, chasing effect
CE, RoHS, ETL

Features - Double Line 120pcs SMD5050 RGB LED stirp

The traditional monochrome LED light strip only meet the requirements of lighting, this 5050 RGB LED light strip could use the digital RGB controller to achieve the lighting effects of different changes, such as chasing, flowing water etc... so that light source to achieve vivid, amazing attractive lighting results.

Main Specification - RGB SMD5050 LED tape light two lines

LED TYPE	RGB Top SMD5050 LED Epistar
Q'TY PER METER	120 LEDs
POWER CONSUMPTION	Max 144watts per roll (5meters)
INPUT VOLTAGE	24V DC
DIMENSIONS	15mm Wide, 5m length
DRIVER FOR 5 METERS	200 watts 24V Power Supply Recommended
IP RATING	IP20 indoor or IP65 outdoor usage
BEAM ANGLE	120*degrees
VIEWING ANGLE	Adjustableby Mounting Position
LIFESPAN	>50,000Hours
STANDARDS	CE, RoHS, UL & ETL
HOUSING	Copper PCB
CONNECTOR	DC connector and other kind OF accessories
EMITTING COLOUR/model	RGB full colours changing, chasing, flowing water effect lighting

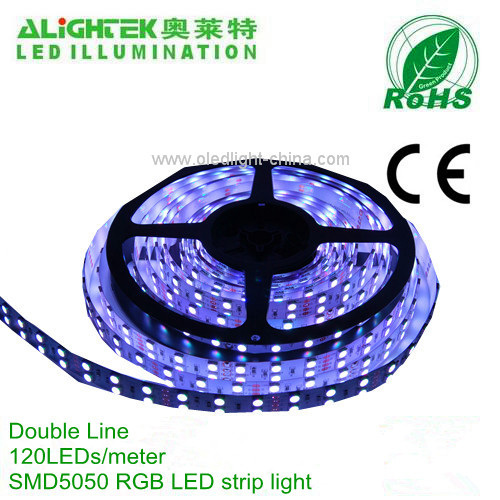

Photo - Dual Line Full colours 5050SMD flexible RGB LED light strip
DigitalRGB SMD 5050 double line 120pcs LED strip light ribbon 15mm PCB

Double Row SMD5050 LED ribbon light waterproof type for your option below
IP65 waterproof 3528 flexible LED strip 60 LEDs per meter white color PCB 24W

IP65 waterproof 3528 flexible LED strip 60 LEDs per meter white color PCB 24W

PCB Drawing - 5cm cuttable Double Row SMD5050 RGB LED ribbon light
Digital RGB SMD 5050 double line 120pcs LED light strip ribbon 15mm PCB

Installation Schematic Diagram - Dual Rows 5050 RGB LED strip light
Digital RGB SMD 5050 double line 120pcs LED light strip ribbon 15mm PCB

Application - Double Row SMD5050 RGB LED strip light ribbon

~ Light up colorful life for hotel decoration, theaters, clubs, showcase
~ Architectural decoration for canopy, Corridor, Archway, KTV backlight
~ For home cabinets, ceilings, decorative objects, outline lighting,
Digital RGB SMD 5050 double line 120pcs LED light strip ribbon 15mm PCB
